Product Details:
Place of Origin: China
Brand Name: chuangxin
Certification: CE
Model Number: XD-DB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 Sets per year

Larger Capacity Straw Mgo Board Making Machine For Fast Speed Production

Description
Product Name: Building Moulding Board Machine Production Capacity: 1500 Sheets
Warranty: 1 Years Standard: CE
Type: Free Standing
High Light:

mgo board machine

,

wall panel equipment



Larger Capacity Straw Mgo Board Making Machine For Fast Speed Production



Technology features

This machine adopts reverse in-phase running technology.

There is not any requirement about high temperature and high pressure during production processing. The board will be formed at one time after roller-extruding under the conditions of normal temperature and normal pressure. This is a green environmental-protection project, because that there is no waste water, waste materials and waste gas during its production processing. The finished board don’t need high temperature drying, air-drying and watering, and under the normal temperature, they will dry well indoor.



Larger Capacity Straw Mgo Board Making Machine For Fast Speed Production 0

Required Raw Material

wheat straw board is made of filling materials,

such as sawdust or all kinds of crushed plant

straw (you can select any one kind) and several

 chemical raw materials which are token as

modified material after special technology.

Technical Index for finished board

1. Oxygenic index%: >90

2. Level combustion: SO

3. Vertical combustion: SO

4. Water content rate: 10.9%

5. Capacity: 1.15g/cm3

6. Static bending intensity: 169.46Mpa

7. Density: T/ m3  1.13

8. Water resistance: Without chalking for 24

hours and there is no change on surface

9. No “Three-wastes” (waste water, waste gas

 and waste residue), no pollution and

environmental protection

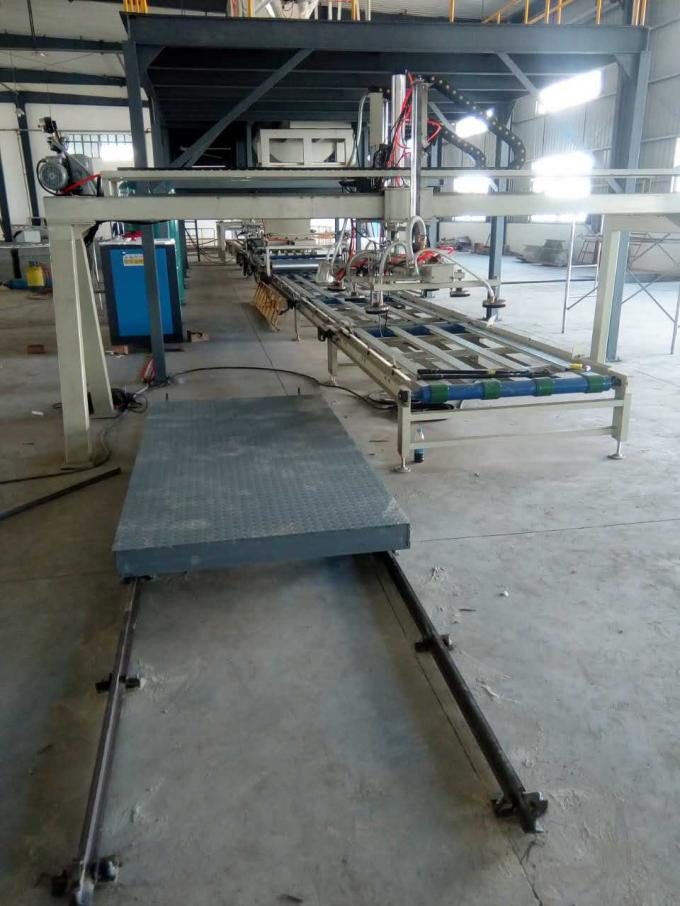

Structure Principle for Machine

wheat straw baord machine with fashionable

design, reasonable structure, stable running

manufactured board of even thickness in larg

 production once through double- roller-extruding

 technology. This production line is

equipped with shaking device which remove

inside and outside air bubble, so our board is

more compact. In addition, we use the no-woven

 cloth as the separating film to increase the

 toughness and strength of the board. The

machine can be adjusted arbitrarily, and then

 produce the board with the thickness of

2-60mm, the biggest width of 1,300mm and

 unlimited length. So you can adjust the thickness

 of board at will
